24×14 Deep Dish Forged Wheels by TH WHEELS are made-to-order aluminum rims for pickup trucks and custom vehicle projects. The 24-inch diameter and 14J width create an aggressive wide-wheel format. Offset, center bore, lip depth, color and surface finish must be developed around an approved vehicle-specific drawing.
-
- 24×14 Deep Dish Forged Wheels
-
- 24×14 Deep Dish Forged Wheels

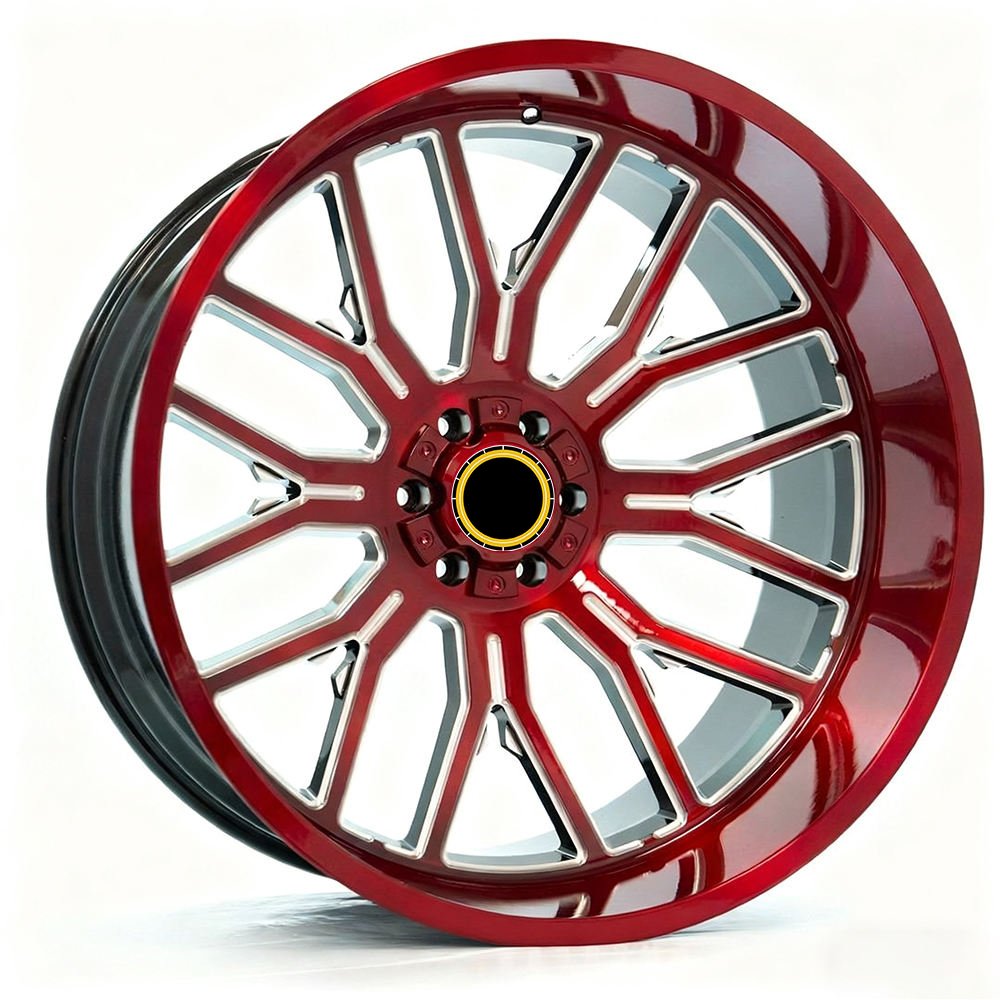

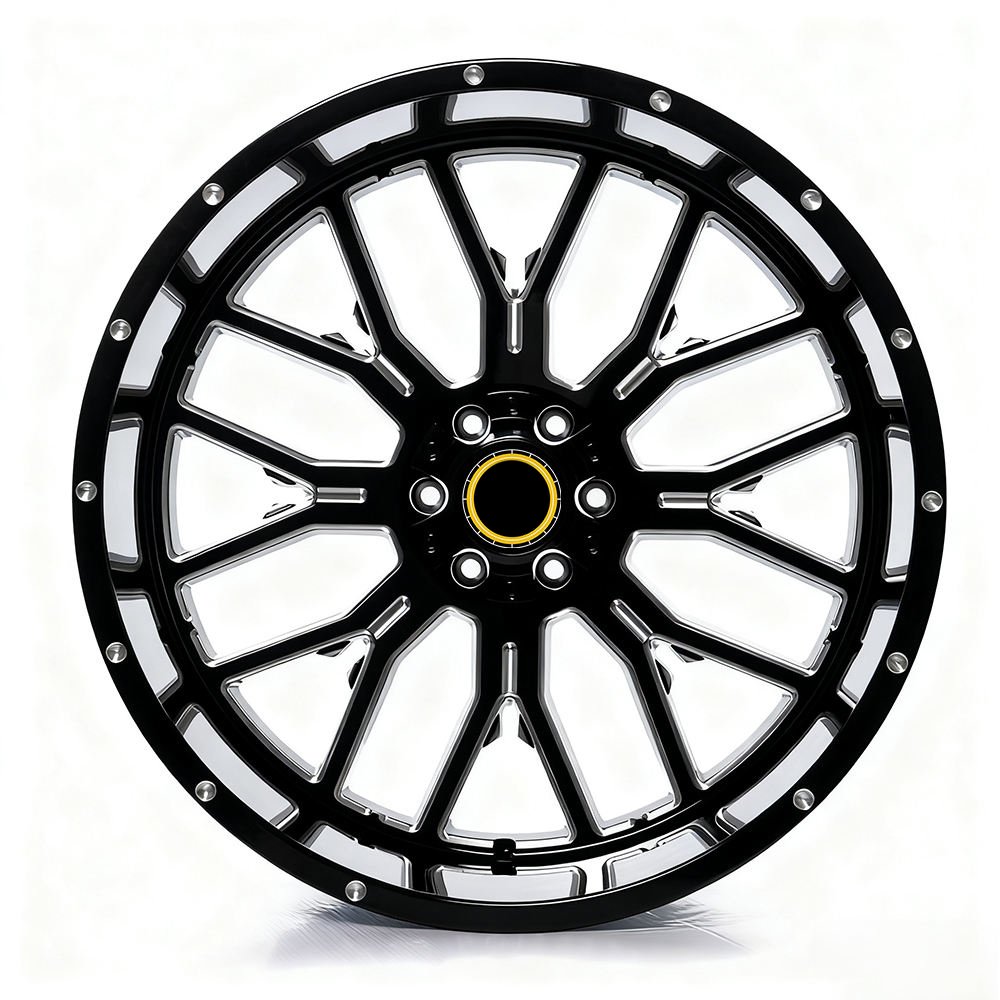

24×14 Deep Dish Forged Wheels for Custom Trucks
These 24×14 Deep Dish Forged Wheels combine monoblock forged construction with CNC-machined mounting details. The supplied headline identifies 6×135 and 6×139.7 mm as the primary PCD options. The broader data also lists 8×139.7, 8×170 and 8×180 mm; each is a separate engineering option rather than an interchangeable fitment.
The 24×14 format supports selected street, show, lifted and customized truck builds. Diameter and PCD alone do not prove compatibility. Tire size, offset, center bore, brake clearance, suspension travel, fender clearance and rated load all affect the final configuration.
24×14 Deep Dish Forged Wheels Key Features
- Forged aluminum-alloy construction for a custom performance wheel project
- 24-inch diameter with a wide 14J profile
- Custom ET, CB and achievable lip depth within engineering limits
- 5-, 6- and 8-hole layouts subject to engineering approval
- 6×135 and 6×139.7 mm primary PCD options
- 8×139.7, 8×170, 8×180 mm and custom alternatives require separate approval
- Deep-dish styling developed from the signed customer drawing
- Customer-drawing styling and CNC-machined mounting details
- Custom color and finishing options
- MOQ of one piece
- Three-year warranty term supplied for this listing; final scope must be contractual
F-150, Silverado 1500 and Platform-Code References
F-150 and Silverado 1500 are project references from the supplied title, not universal fitment guarantees. P222, P415, P552, P703, U326, U554 and U375 are retained only as supplied project or platform references; the code alone cannot authorize fitment.
Before quotation, provide the vehicle manufacturer, model, production year, exact trim, drivetrain, front or rear axle position, original wheel and tire size, PCD, center bore, offset, brake package, suspension changes and intended load. Modified, lifted, lowered, wide-body or dual-rear-wheel vehicles need additional measurements and may require a physical clearance template.
For background on the relationship among diameter, width, bolt pattern, center bore and offset, see Wikipedia’s overview of wheel sizing. A matching PCD does not confirm that the rim will clear the brake caliper, seat correctly on the hub or remain inside the bodywork.
6061-T6 Aluminum and Forged Construction
The supplied material wording includes “Aluminum Alloy 6061–T” and “T6061-T,” which are incomplete temper designations. This listing normalizes the requested material to 6061-T6 aluminum alloy, but the final alloy and heat-treatment certificate must confirm that specification before production. General alloy background is available in Wikipedia’s 6061 aluminum alloy article.
Forging shapes the starting material under pressure before CNC machining creates the final mounting surfaces, windows and spoke geometry. Final strength depends on alloy verification, heat treatment, engineering, machining, inspection and application-specific testing. Wikipedia’s general article on forging explains the process but does not certify this product.
Engineering the Deep-Dish Profile
The achievable lip is controlled by mounting-pad position, ET, brake clearance, center bore, spoke geometry and structural requirements. The supplier should verify inner-barrel clearance, spoke-to-caliper clearance, hub engagement, valve location, fastener seat and required load. A 14J wheel or aggressive offset may require suitable tires, suspension changes and additional body clearance.
Ask for a final two-dimensional cross-section or three-dimensional assembly drawing showing PCD, CB, ET, 14J width, 24-inch diameter, lip depth, brake envelope and load rating. Do not approve production from a styling image alone. The signed drawing should be the controlling fitment document for these 24×14 Deep Dish Forged Wheels.
Customization, Warranty and Packaging
Color, surface finish, PCD, CB, ET, width, diameter and hole count are customizable within engineering limits. The requested warranty term is three years. Because one screenshot shows a different period, the sales contract must state the binding structural and finish coverage, exclusions, installation requirements, claim procedure and effective period.
The available packaging reference is one wheel per package, approximately 60 × 60 × 31 cm and 20.0 kg gross. A finished 24×14 wheel may exceed a generic reference carton, so request the final measured packing dimensions and gross weight before arranging freight.
Send the full vehicle data, desired wheel size, design reference, finish, quantity and destination through the TH WHEELS contact page. Compare other options in the forged-wheel collection or return to the TH WHEELS website.
Installation and Safety
Professional installation is required. Confirm the approved tire size, bead compatibility, tire load and speed rating, hub seating, fastener type, thread engagement, tightening torque, brake and suspension clearance, wheel balance and safe body clearance. Recheck fastener torque after initial use according to the installer’s approved procedure.
Large-diameter or aggressive-offset wheels can change steering feel, scrub radius, braking response, bearing loads and tire clearance. Local road regulations, vehicle load requirements and insurance conditions should be checked before installation. Never use an unapproved wheel merely because its bolt holes align.
24×14 Deep Dish Forged Wheels Specifications
| Brand | TH WHEELS |
|---|---|
| Construction | Forged |
| Material | 6061-T6 aluminum alloy; confirm material certificate |
| Configuration | 24×14 |
| Diameter / Width | 24 inch / 14J |
| Hole | 6 or 8; custom options require approval |
| PCD | 6×135 and 6×139.7 mm primary; 8×139.7, 8×170, 8×180 mm or approved custom |
| ET / CB | Customizable |
| Design | Deep dish / customer drawing |
| Color / Finish | Customizable |
| Vehicle References | F-150, Silverado 1500; supplied platform codes require confirmation |
| MOQ | 1 piece |
| Warranty | 3 years; confirm contract scope |
| Certification References | TUV, JWL, VIA, TS16949; request applicable documents |
| Package Reference | Single item; 60 × 60 × 31 cm; 20.0 kg gross |
| Condition | New |
| Place of Origin | China |
24×14 Deep Dish Forged Wheels FAQ
Does selecting 5, 6 or 8 holes guarantee fitment?
No. Hole count, PCD, CB, ET, fastener seat, brake clearance and load rating must all match the approved vehicle data.
Can the listed PCD options be interchanged?
No. Each bolt circle is different. The measured vehicle specification and signed production drawing must agree exactly.
Are tires included?
No tires are assumed in this listing. Treat the product as wheel rims only unless the final quotation explicitly includes approved tires.
Is 6061-T6 confirmed?
It is the normalized requested specification for this listing. Require the final material and heat-treatment certificate before production.
What is the warranty period?
The requested listing term is three years, subject to the scope and conditions written in the binding sales contract.
