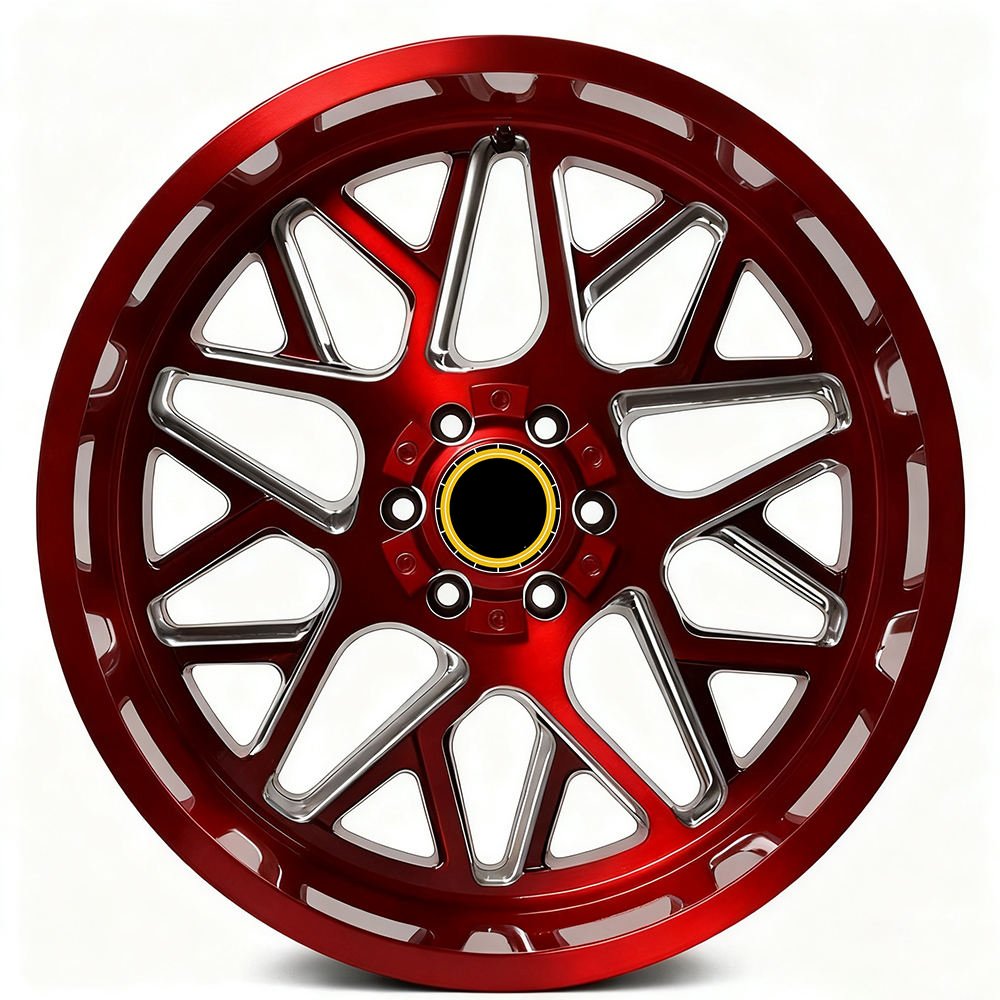

Forged Truck Wheels by TH WHEELS are made-to-order aluminum rims for pickup trucks and custom vehicle projects. The listed configurations are 22×12, 24×12, 24×14, 26×12 and 28×16. Offset, center bore, color and surface finish can be developed around an approved vehicle-specific drawing.
-
- Custom 22×12 24X12 24X14 26X12 28X16 Inch 6×135 6×139.7 8×170 8×180 Alloy Forged Truck Wheels for F-150 F-350 1500 2500
-
- Custom 22×12 24X12 24X14 26X12 28X16 Inch 6×135 6×139.7 8×170 8×180 Alloy Forged Truck Wheels for F-150 F-350 1500 2500
-
- Custom 22×12 24X12 24X14 26X12 28X16 Inch 6×135 6×139.7 8×170 8×180 Alloy Forged Truck Wheels for F-150 F-350 1500 2500
Forged Truck Wheels in Five Wide Configurations
These Forged Truck Wheels combine monoblock forged construction with CNC-machined mounting details. The supplied specification lists 6×135, 6×139.7, 8×139.7, 8×170 and 8×180 mm patterns. Each is a distinct bolt circle and must be confirmed from measured vehicle data before production.
The 22, 24, 26 and 28 inch diameter range with 12J, 14J and 16J widths supports street, show, lifted and customized truck builds. Diameter and PCD alone do not prove compatibility. Tire size, offset, center bore, brake clearance, suspension travel, fender clearance and rated load all affect the final configuration.
Forged Truck Wheels Key Features
- Forged aluminum-alloy construction for a custom performance wheel project
- 22×12, 24×12, 24×14, 26×12 and 28×16 listed configurations
- 12J, 14J and 16J widths plus custom ET and CB within engineering limits
- 5-, 6- and 8-hole layouts subject to engineering approval
- 6×135, 6×139.7, 8×139.7, 8×170 and 8×180 mm PCD options
- Every PCD and custom alternative requires vehicle-specific approval
- Customer-drawing styling and CNC-machined mounting details
- Custom color and finishing options
- MOQ of one piece
- Three-year warranty term supplied for this listing; final scope must be contractual
F-150, F-350, 1500 and 2500 Fitment
F-150, F-350, 1500 and 2500 are project references from the supplied title, not universal fitment guarantees. Model years, trim levels, single- or dual-rear-wheel layouts, axle ratings, brake packages, stud patterns and hub pilots can differ substantially, so measured fitment data is mandatory.
Before quotation, provide the vehicle manufacturer, model, production year, exact trim, drivetrain, front or rear axle position, original wheel and tire size, PCD, center bore, offset, brake package, suspension changes and intended load. Modified, lifted, lowered, wide-body or dual-rear-wheel vehicles need additional measurements and may require a physical clearance template.
For background on the relationship among diameter, width, bolt pattern, center bore and offset, see Wikipedia’s overview of wheel sizing. A matching PCD does not confirm that the rim will clear the brake caliper, seat correctly on the hub or remain inside the bodywork.
6061-T6 Aluminum and Forged Construction
The supplied material wording includes “Aluminum Alloy 6061–T” and “T6061-T,” which are incomplete temper designations. This listing normalizes the requested material to 6061-T6 aluminum alloy, but the final alloy and heat-treatment certificate must confirm that specification before production. General alloy background is available in Wikipedia’s 6061 aluminum alloy article.
Forging shapes the starting material under pressure before CNC machining creates the final mounting surfaces, windows and spoke geometry. Final strength depends on alloy verification, heat treatment, engineering, machining, inspection and application-specific testing. Wikipedia’s general article on forging explains the process but does not certify this product.
Engineering the Custom Wheel
The supplier should verify mounting-pad thickness, inner-barrel clearance, spoke-to-caliper clearance, hub engagement, valve location, fastener seat and required load. Large diameters or aggressive offsets may require suitable tires, suspension changes and extra body clearance. A wheel-and-tire package is not assumed: this listing is for rims only unless the quotation and contract expressly include tires.
Ask for a final two-dimensional cross-section or three-dimensional assembly drawing showing PCD, CB, ET, width, diameter, brake envelope and load rating. Do not approve production from a styling image alone. The signed drawing should be the controlling fitment document for these Forged Truck Wheels.
Customization, Warranty and Packaging
Color, surface finish, PCD, CB, ET, width, diameter and hole count are customizable within engineering limits. The requested warranty term is three years. Because one screenshot shows a different period, the sales contract must state the binding structural and finish coverage, exclusions, installation requirements, claim procedure and effective period.
The available packaging reference is one wheel per package, approximately 60 × 60 × 31 cm and 20.0 kg gross. Actual measurements and weight will vary across the listed 22-28 inch diameters and 12J-16J widths. Request the final packing list before arranging freight, especially for wide or large-diameter orders.
Send the full vehicle data, desired wheel size, design reference, finish, quantity and destination through the TH WHEELS contact page. Compare other options in the forged-wheel collection or return to the TH WHEELS website.
Installation and Safety
Professional installation is required. Confirm the approved tire size, bead compatibility, tire load and speed rating, hub seating, fastener type, thread engagement, tightening torque, brake and suspension clearance, wheel balance and safe body clearance. Recheck fastener torque after initial use according to the installer’s approved procedure.
Large-diameter or aggressive-offset wheels can change steering feel, scrub radius, braking response, bearing loads and tire clearance. Local road regulations, vehicle load requirements and insurance conditions should be checked before installation. Never use an unapproved wheel merely because its bolt holes align.
Forged Truck Wheels Specifications
| Brand | TH WHEELS |
|---|---|
| Construction | Forged |
| Material | 6061-T6 aluminum alloy; confirm material certificate |
| Configurations | 22×12, 24×12, 24×14, 26×12, 28×16 |
| Width | 12J, 14J, 16J; customizable |
| Hole | 5, 6 or 8 |
| PCD | 6×135, 6×139.7, 8×139.7, 8×170, 8×180 mm or approved custom |
| ET / CB | Customizable |
| Design | Customizable / customer drawing |
| Color / Finish | Customizable |
| Vehicle References | F-150, F-350, 1500, 2500 |
| MOQ | 1 piece |
| Warranty | 3 years; confirm contract scope |
| Certification References | TUV, JWL, VIA, TS16949; request applicable documents |
| Package Reference | Single item; 60 × 60 × 31 cm; 20.0 kg gross |
| Condition | New |
| Place of Origin | China |
Forged Truck Wheels FAQ
Does selecting 5, 6 or 8 holes guarantee fitment?
No. Hole count, PCD, CB, ET, fastener seat, brake clearance and load rating must all match the approved vehicle data.
Can the listed PCD options be interchanged?
No. Each bolt circle is different. The measured vehicle specification and signed production drawing must agree exactly.
Are tires included?
No tires are assumed in this listing. Treat the product as wheel rims only unless the final quotation explicitly includes approved tires.
Is 6061-T6 confirmed?
It is the normalized requested specification for this listing. Require the final material and heat-treatment certificate before production.
What is the warranty period?
The requested listing term is three years, subject to the scope and conditions written in the binding sales contract.
