Multi Piece Forged Wheels from TH WHEELS are custom aluminum-alloy rims available in 2-piece and 3-piece construction for Impala SS passenger-car retrofit and design-drawing projects. Model S-C71 uses a five-spoke design, while diameter, width, PCD, ET, center bore and color can be customized. Each project requires vehicle data, drawing approval and fitment confirmation before production.
Premium Multi Piece Forged Wheels for Impala SS Projects
These Multi Piece Forged Wheels are intended for Impala SS project inquiries, but the vehicle name does not guarantee direct fitment. Production year, trim, brake package, suspension, hub dimensions and original wheel specification must be checked. The product can be developed from customer drawings, supplier design proposals or approved samples. Universal customization means specifications can be developed for different projects, not that one completed wheel fits every car.
Construction choice affects appearance, engineering, serviceability and production. A 2-piece wheel normally combines a forged center with a separate barrel, while a 3-piece design uses separate center and barrel sections. The exact assembly method, hardware, sealing, load rating and maintenance requirements must be confirmed in the approved design.
Key Features of the Multi Piece Forged Wheels
- Forged aluminum-alloy construction
- 2-piece and 3-piece forged construction options

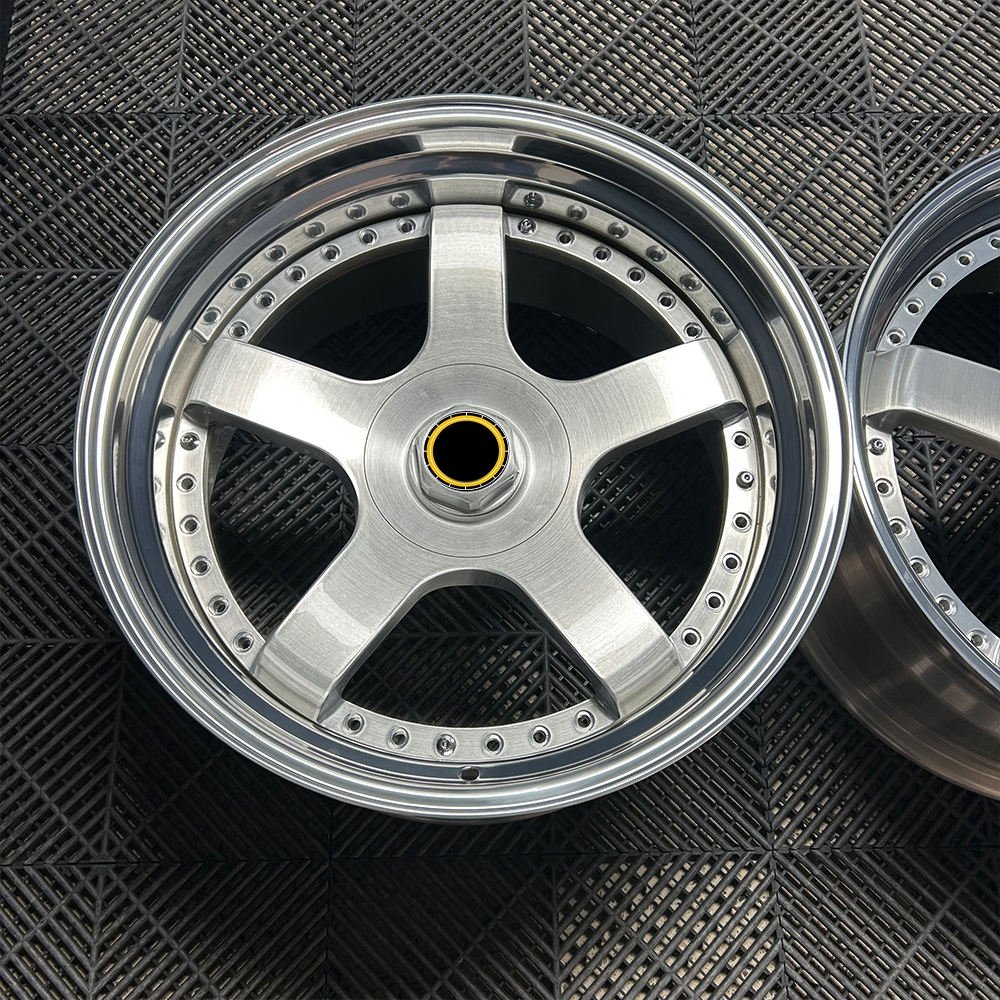

- Five-spoke custom design
- Drawing-based, sample-based and full customization
- Customizable finish and color
- 18, 19, 20, 21, 22, 23 and 24 inch diameters
- Five-hole and custom configurations
- Customizable width, ET, CB and color
- Three-year warranty stated in the supplied product information
- MOQ of one piece for flexible B2B project ordering
Choosing 2-Piece or 3-Piece Construction
A 2-piece design offers flexibility between the forged center and barrel, while a 3-piece design can support additional center, barrel and finish combinations. Construction type should be chosen according to design objectives, required size, load rating, maintenance expectations, budget and production feasibility—not appearance alone.
PCD, ET and CB are customizable. Offset controls the inward and outward position of the rim, while center bore controls the hub interface. The selected Multi Piece Forged Wheels specification must be reviewed as a complete assembly. Read the TH WHEELS fitment guide for additional information about width, offset and center bore.
18-24 Inch Diameter and Custom Fitment
Displayed diameter options include 18, 19, 20, 21, 22, 23 and 24 inches. Width, PCD, ET, center bore and color remain customizable. Every proposed combination requires a drawing, brake-clearance review and fitment confirmation before production.
For a technical review, provide the exact vehicle model, production year, trim, drive configuration, axle data, original wheel and tire sizes, PCD, offset, center bore and brake package. Include suspension lifts, body changes or other modifications, plus intended payload, towing or off-road use and the required wheel load rating. Explore the forged wheel collection and off-road forged wheel category.
Certification, Warranty and Packaging
The supplied screenshots display CE and DOT labels and list JWL, VIA and ISO 9001 in the product data. Certification scope may depend on model, size, market and production batch. Buyers should request current documents and confirm that they apply to the final S-C71 configuration. These references do not replace local roadworthiness, homologation or inspection requirements.
A three-year warranty is stated. Final coverage, exclusions and claim requirements must be confirmed in the commercial agreement. The listed selling unit is one item, packed in a carton measuring 55 × 55 × 32 cm with a gross weight of 20.0 kg. Packaging data is indicative and can change with diameter, width and final design.
B2B Ordering and Installation
The MOQ is one piece, supporting samples, replacement orders and custom vehicle projects. Minor, drawing-based, sample-based and full customization capabilities are shown. For a quotation, send the complete fitment, requested diameter and width, PCD, ET, CB, color, quantity, destination and load requirement. Pricing, lead time, packaging and shipping terms should be confirmed in the formal offer. Submit the details through the TH WHEELS contact page.
Installation must be performed by a qualified wheel and tire professional. Verify hub seating, fastener compatibility, assembly hardware, sealing where applicable, brake clearance, suspension clearance, tire load rating and tightening torque before use. Multi Piece Forged Wheels may have construction-specific inspection and maintenance requirements that must be followed.
For general background, Wikipedia explains the forging manufacturing process and common wheel sizing terminology. These external references provide educational information only and do not certify the S-C71 wheel or confirm vehicle fitment.
Specifications
| Brand | TH WHEELS |
|---|---|
| Model | S-C71 |
| Material | Aluminum alloy |
| Construction | 2-piece or 3-piece forged |
| Design | Five spoke / custom design drawing |
| Hole | 5 or customized |
| PCD | Customizable |
| ET | Customizable |
| CB | Customizable |
| Diameter | 18-24 inch shown; additional sizes customizable |
| Width | Customizable |
| Finish | Customizable |
| Color | Customizable |
| Purpose | Retrofit / performance upgrade |
| Warranty | 3 years |
| MOQ | 1 piece |
| Package | Carton; 55 × 55 × 32 cm; 20.0 kg gross |
| Condition | New |
| Place of Origin | China |
Multi Piece Forged Wheels FAQ
Can I choose 2-piece or 3-piece construction?
Yes. Both construction types are listed. Final availability depends on the size, design, load requirement and approved engineering drawing.
Can width, ET and center bore be customized?
Yes. Width, PCD, ET and CB are listed as customizable and require vehicle-specific approval.
Which sizes are available?
Displayed diameters range from 18 to 24 inches. Additional sizes can be discussed as custom inquiries.
Does the wheel have certifications?
CE and DOT labels are shown, while JWL, VIA and ISO 9001 are listed. Request documents applicable to the ordered S-C71 size and market.
What is the MOQ?
The stated minimum order quantity is one piece.
What information is required for a quotation?
Send vehicle model and year, wheel diameter and width, PCD, ET, CB, finish, quantity, destination, brake details and any modification information.
